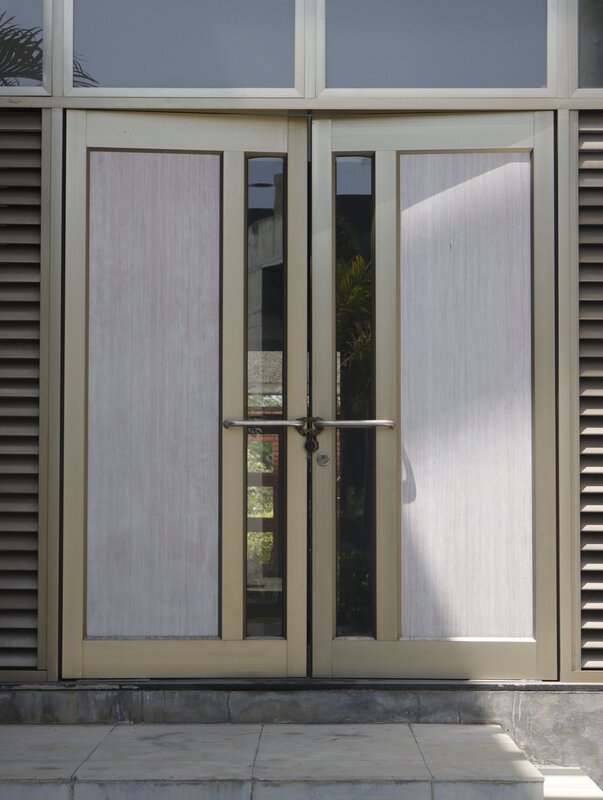

Door lites, sidelites and transoms for entry and patio programs, cut and tempered to hazardous-location requirements with the obscure patterns homeowners actually ask for.
Clear, obscure or tinted, sized to your lite frame with seamed edges.
Tall narrow lites and shaped transoms cut to match the elevation.
Dual pane for exterior doors, obscure inboard lite where privacy matters.
Ceramic borders and patterns fired in — permanent alternative to applied films.
| Common sizes | Any size to 90" × 144" |
| Thickness | 1/8"–1/4" (3–6 mm) single · IG to 1" |
| Glass types | Clear, low-iron, bronze, grey, obscure (rain, glue chip, satin) |
| Edgework | Seamed standard · ground or polish for exposed edges |
| Size tolerance | ± 1/32" on cut size; squareness within 1/16" |
| Standards | CPSC 16 CFR 1201, ANSI Z97.1, ASTM C1048 · permanent temper mark |
| Lead time | 5–10 business days |
Need a spec not listed? We quote off your drawing, not off a catalog.
DXF, DWG, PDF or a dimensioned sketch. We check hole placement and edge distances against tempering limits before we price it — so the quote you get is the part you can actually have.
Start a quote →Something not covered? Call the shop — you'll reach someone who has run the oven.
Glazing in doors and within 24" of a door edge is a hazardous location under the IRC, so it requires safety glazing. All our lites are permanently marked.
Send a sample or the pattern name and we'll confirm availability before you commit a program to it.
Yes — one-off through production. A measured sketch or the old lite's dimensions is enough to quote.
Dimensions, thickness, finish and quantity are enough for a first number. Drawings and photos welcome.
